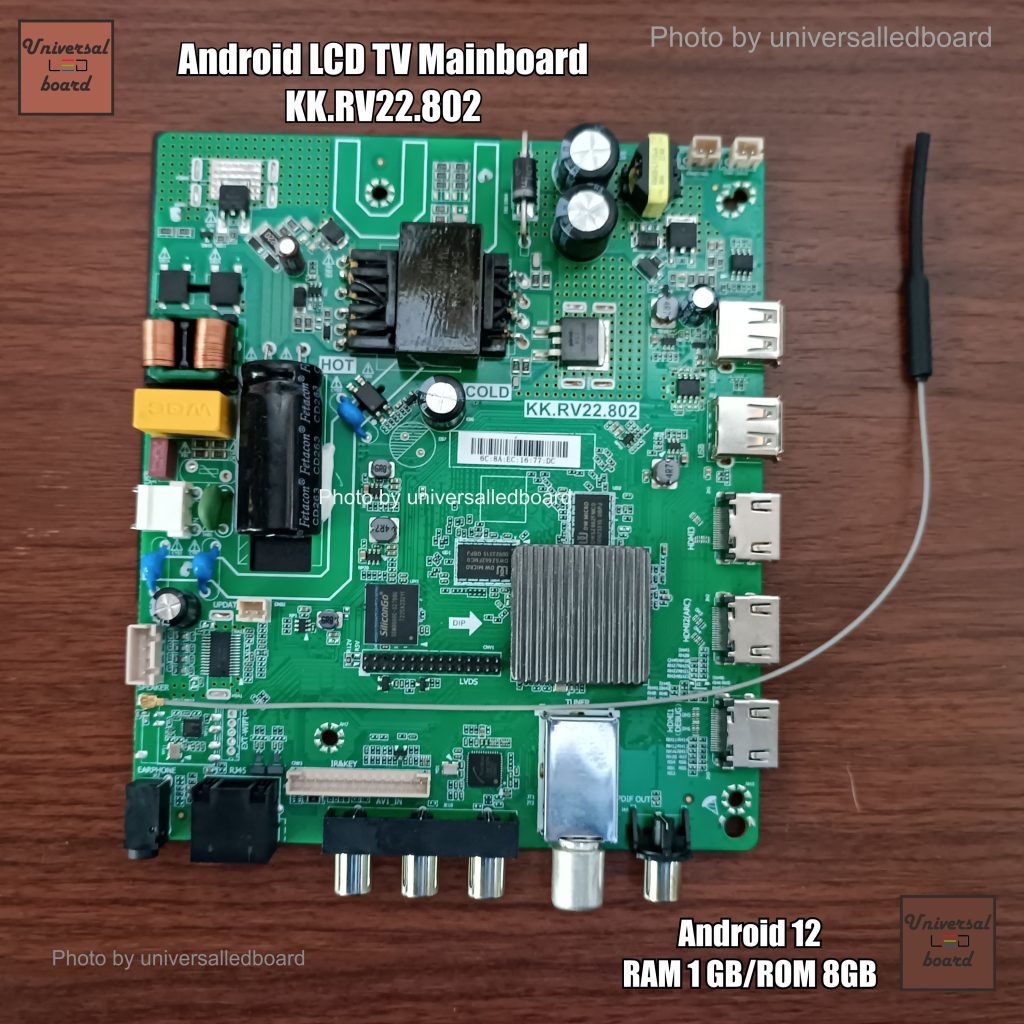

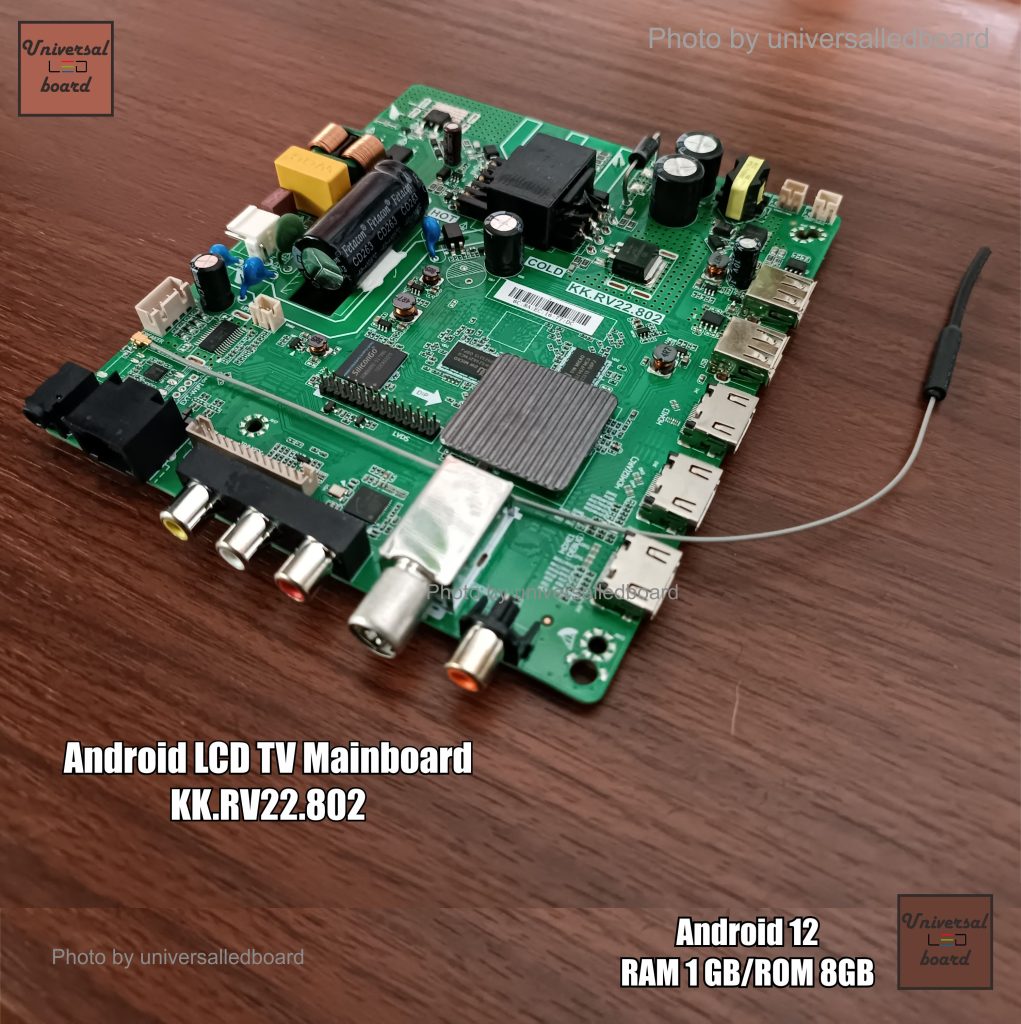

MAINBOARD
MAINBOARD SMART TV
Mainboard SMART TV ANDROID DVBT2
Model KK.RV22.802
SPESIFICATION
Mainboard LCD SMART ANDROID
Model : KK.RV22.802
Main chipset :H13751ARBCV3520N0F
CPU : A53*4
GPU : Mali 450 MP2
OS : ANDROID 12
RAM : 1G
ROM 8G
PORT : 3 HDMI PORT Input
2 USB PORT
RCA PORT Input
Ethernet
Antena Input
Support resolution : HD 1366*768 and FHD 1920*1080
Panel Power : Default 12V /Optional 5V
PSU Build in
Inverter LED backlight 60V~110V 600mA
Audio power build in 2*8W
Fitur
DTV digital DVBT2
Wifi
Miracast
Playst0re
N3tfl1x
Y0utube
T1kt0k

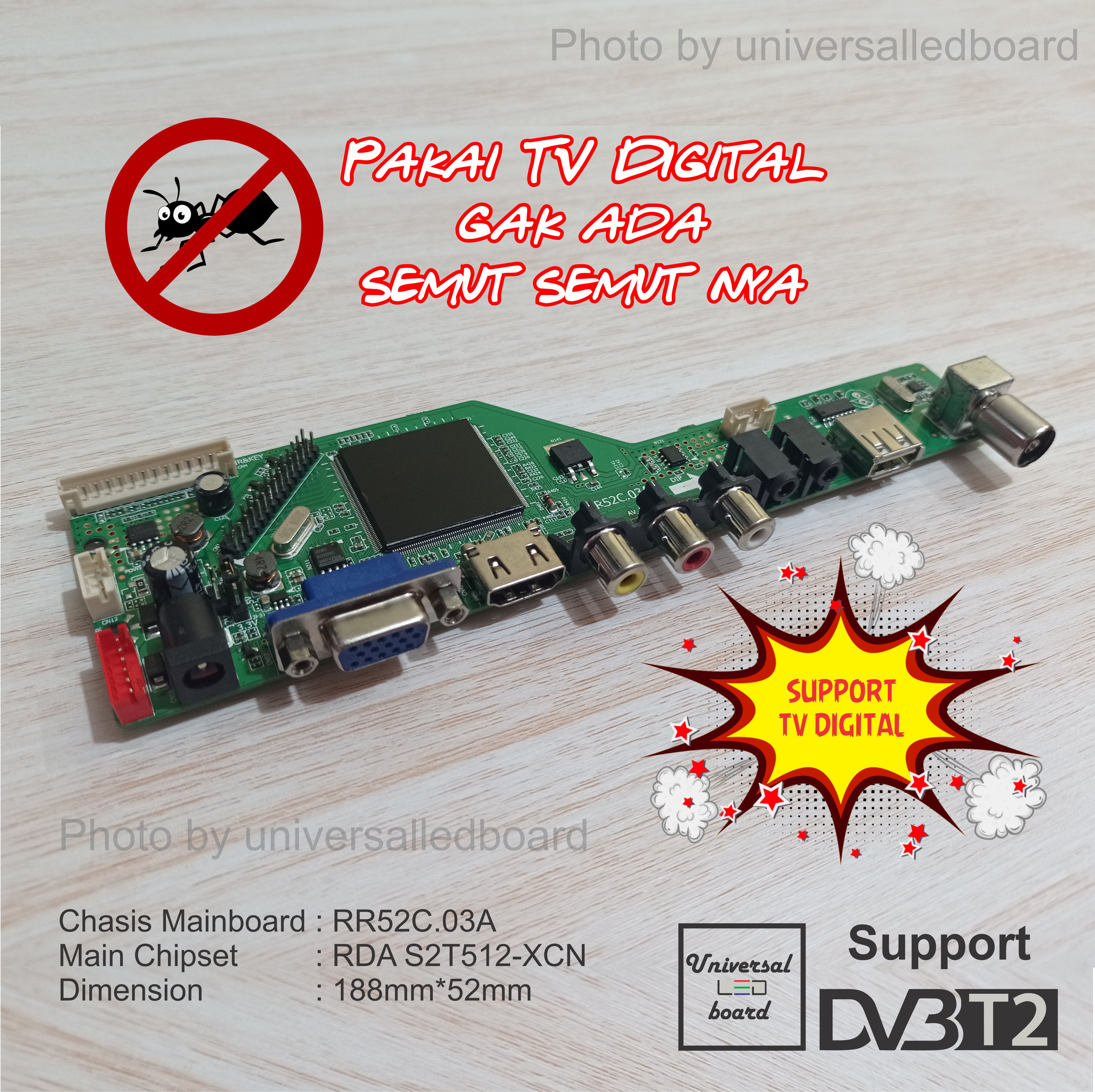

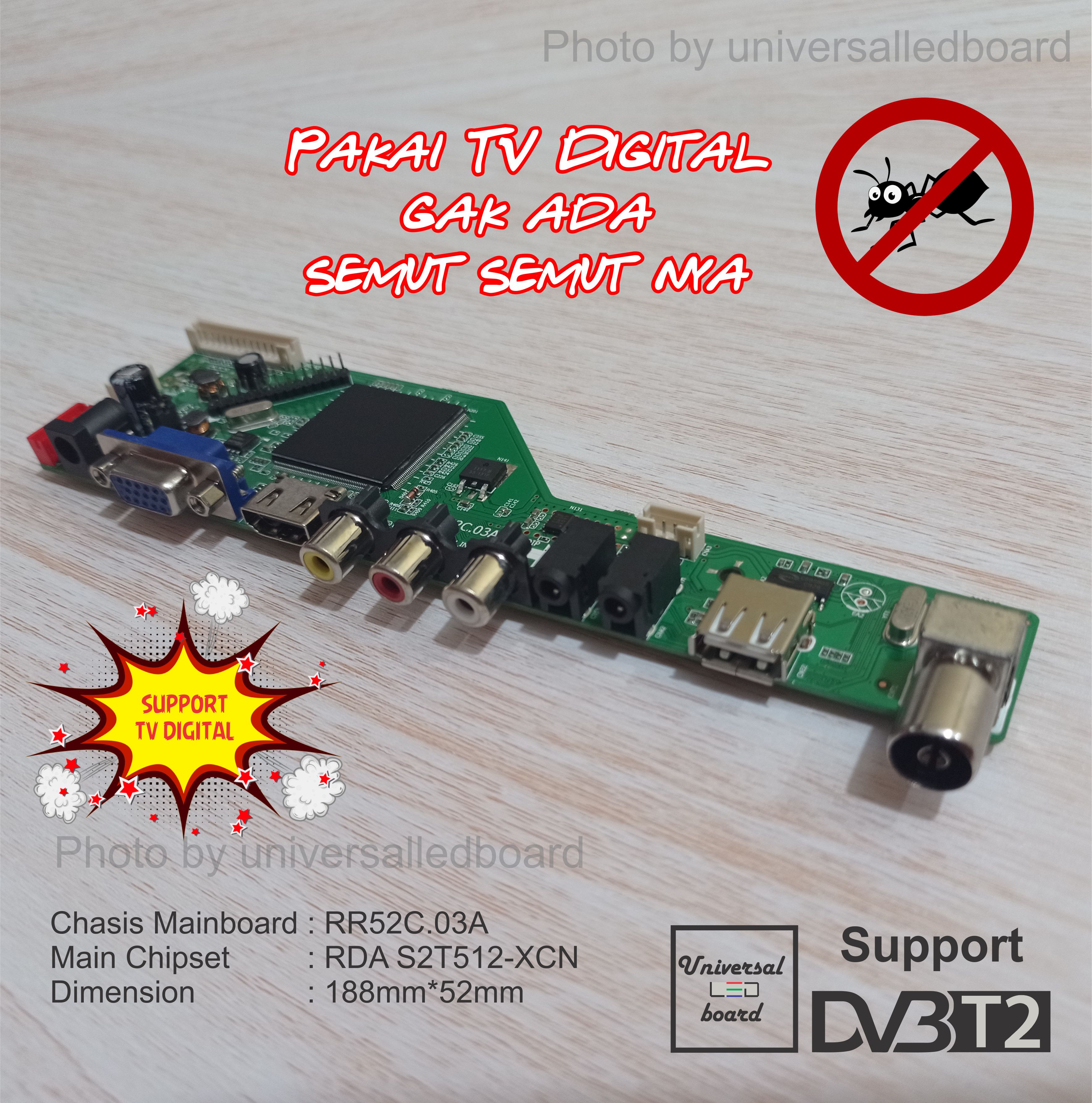

MAINBOARD DIGITAL
Mainboard TV Digital DVBT2
Model RR52C.03
SPESIFICATION
Mainboard Universal support TV Digital DVBT2
chipset : RR52C(Chipset Terbaru)
function:
*CH-/CH+/MENU/VOL-/VOL+Souce/Power
*interface:Single/Dual Channel LVDS
*OSD
*Port :VGA+HDMI+AV+Audio+USB+TV
*output power:2×2.5W(4ohm)
*Resolution: Up to 1920*1080@60HZ
*voltage:+12V
*Vcc option:+3.3V/+5V/+12V
*Control function
firmware upgrade and media player function
USB Support File Ext :
.avi/.mp4/.mkv/.dat/.vob/.rmvb/.mp3/.wma/.jpg/.bmp/.png/.txt

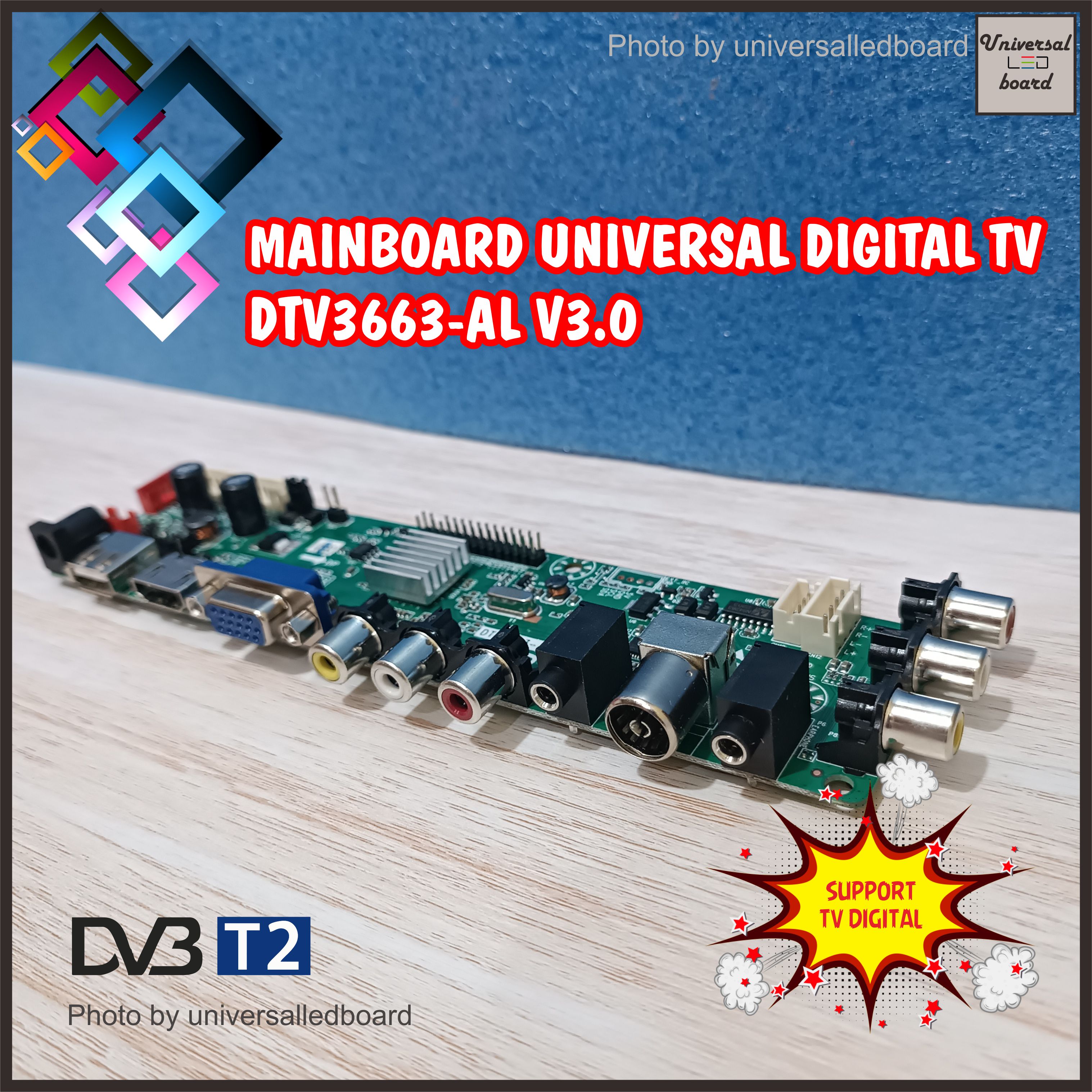

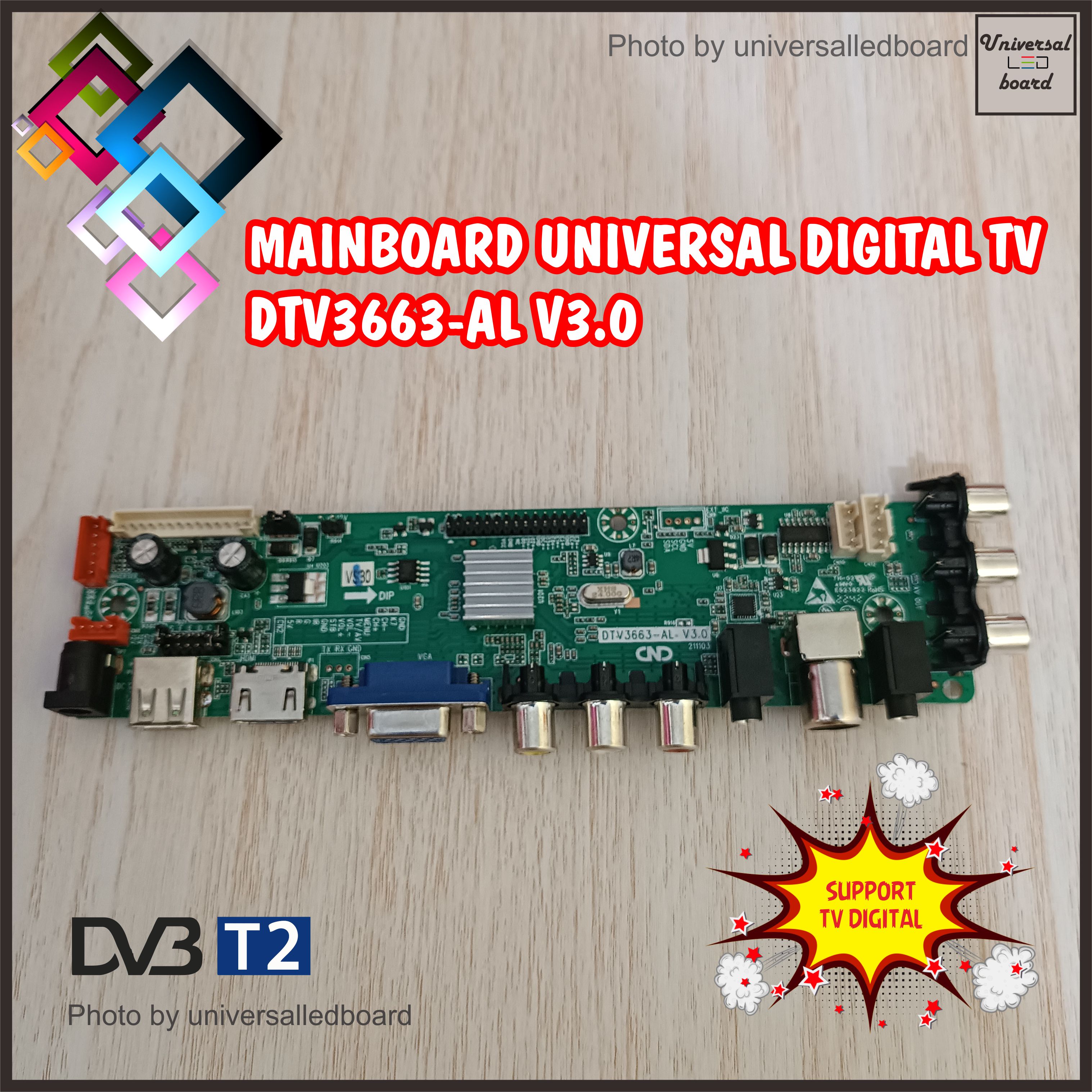

MAINBOARD DIGITAL
Mainboard TV Digital DVBT2
Model DTV3663
SPESIFICATION
Mainboard dengan pilihan resolusi melalui jumper tanpa perlu update Firmware
chipset : MSD3663
function:
*CH-/CH+/MENU/VOL-/VOL+Souce/Power
*interface:Single/Dual Channel LVDS
*OSD
*Port :VGA+HDMI+AV+Audio+USB+TV
*output power:2×2.5W(4ohm)
*Resolution: Up to 1920*1080@60HZ
*voltage:+12V
*Vcc option:+3.3V/+5V/+12V
*Control function

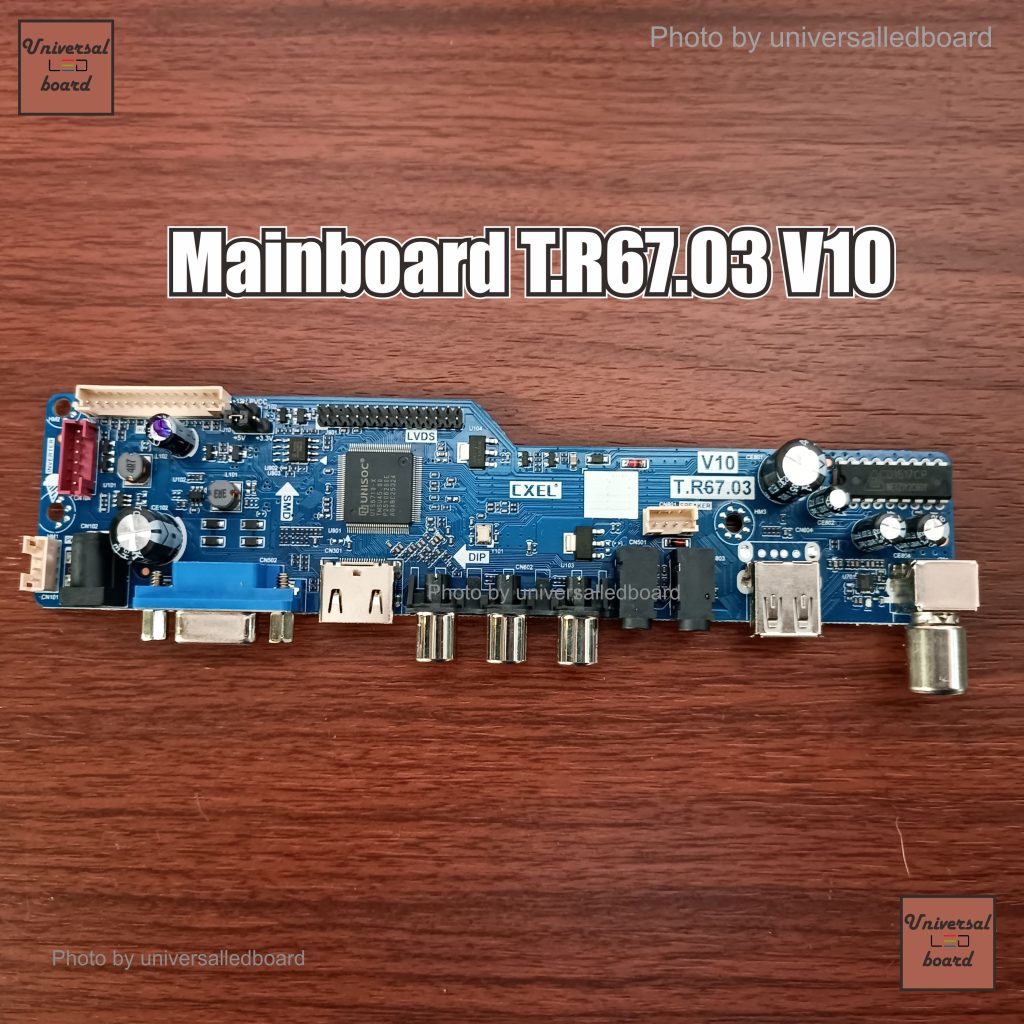

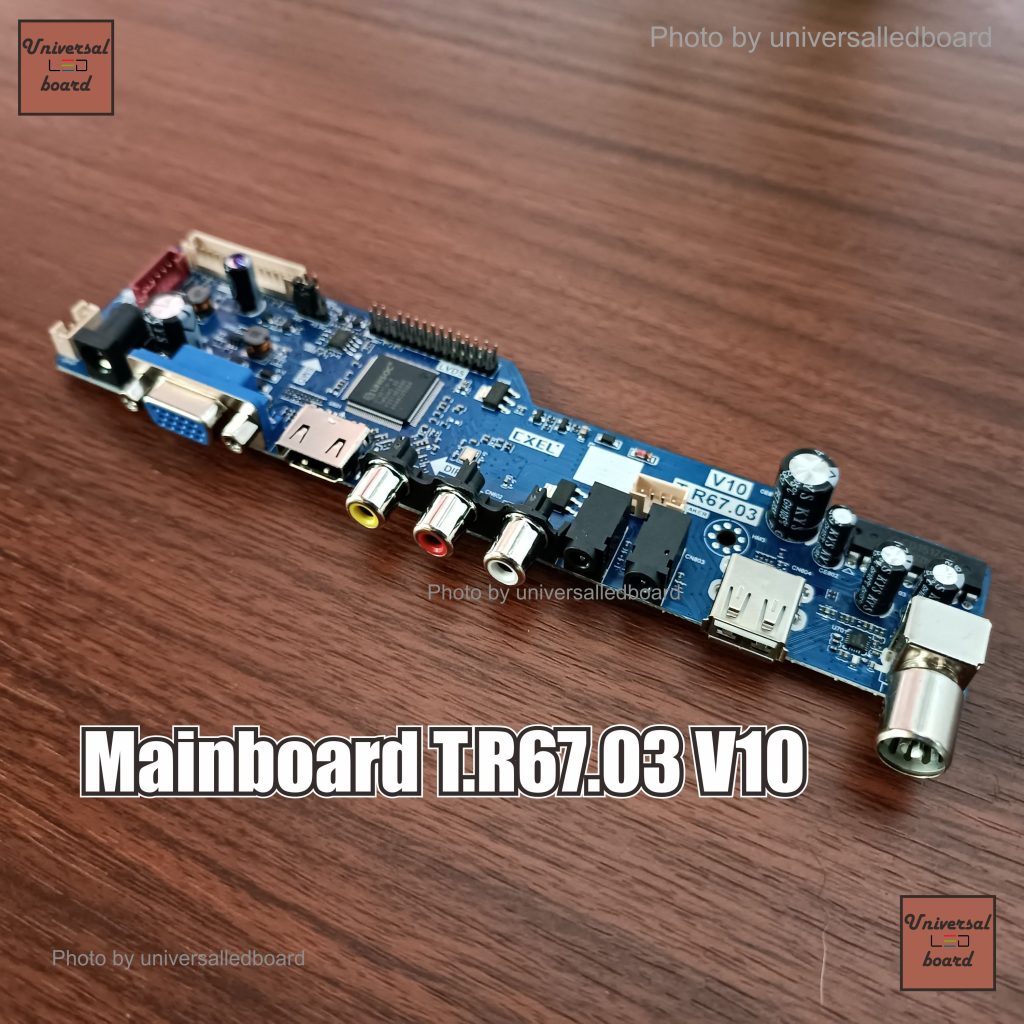

MAINBOARD ANALOG
Mainboard TV Analog
Model T.R67.03
SPESIFICATION Mainboard Universal analog
Mb universal LCD /LED TV model TR6703
chipset : UTS6710(Chipset Terbaru) Analog TV
function:
*CH-/CH+/MENU/VOL-/VOL+Souce/Power
*interface:Single/Dual Channel LVDS
*OSD
*Port :VGA+HDMI+AV+Audio+USB+TV
*output power:2×2.5W(4ohm)
*Resolution: Up to 1920*1080@60HZ
*voltage:+12V
*Vcc option:+3.3V/+5V/+12V
*Control function
firmware upgrade and media player function
USB Support File Ext :
.avi/.mp4/.mkv/.dat/.vob/.rmvb/.mp3/.wma/.jpg/.bmp/.png/.txt
